Description

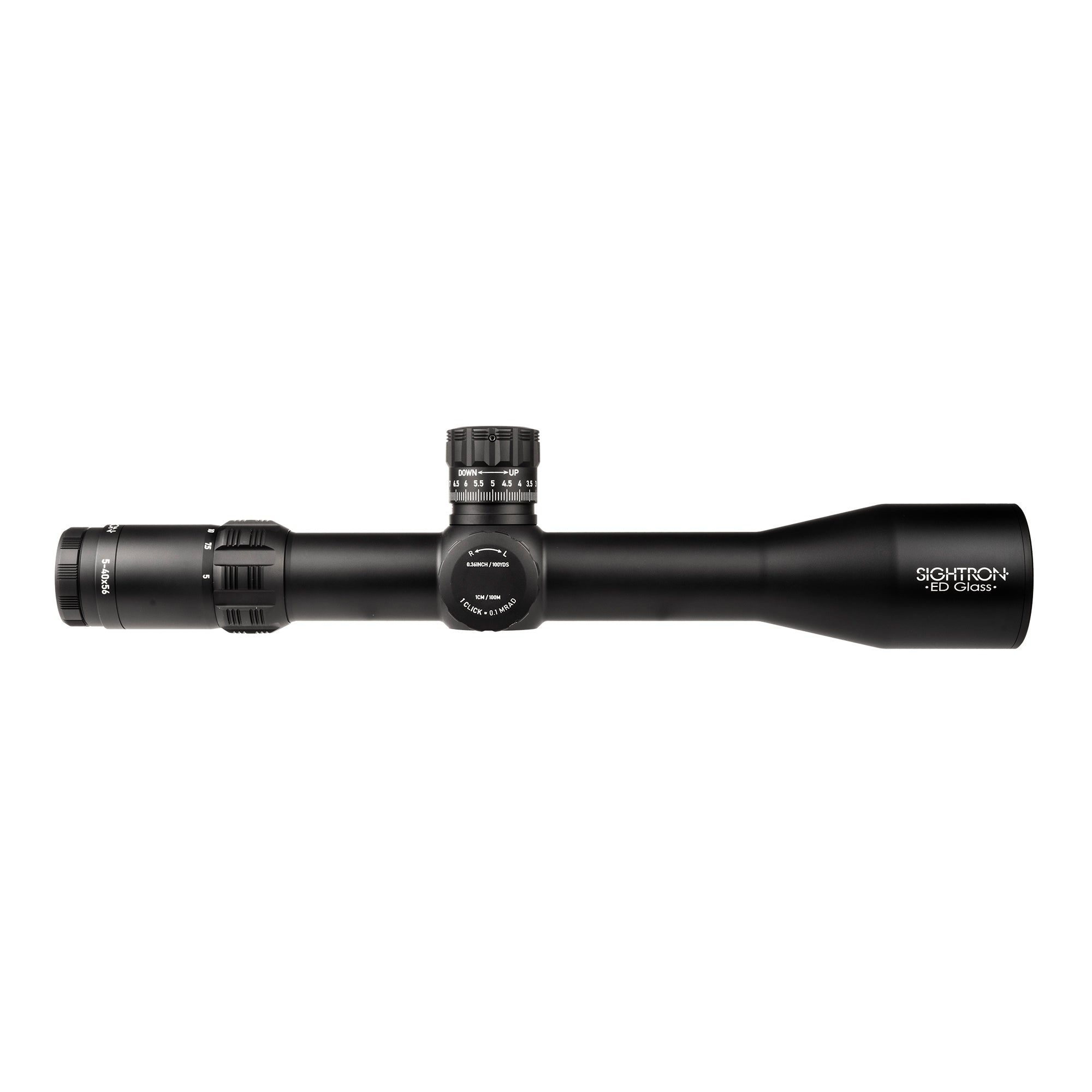

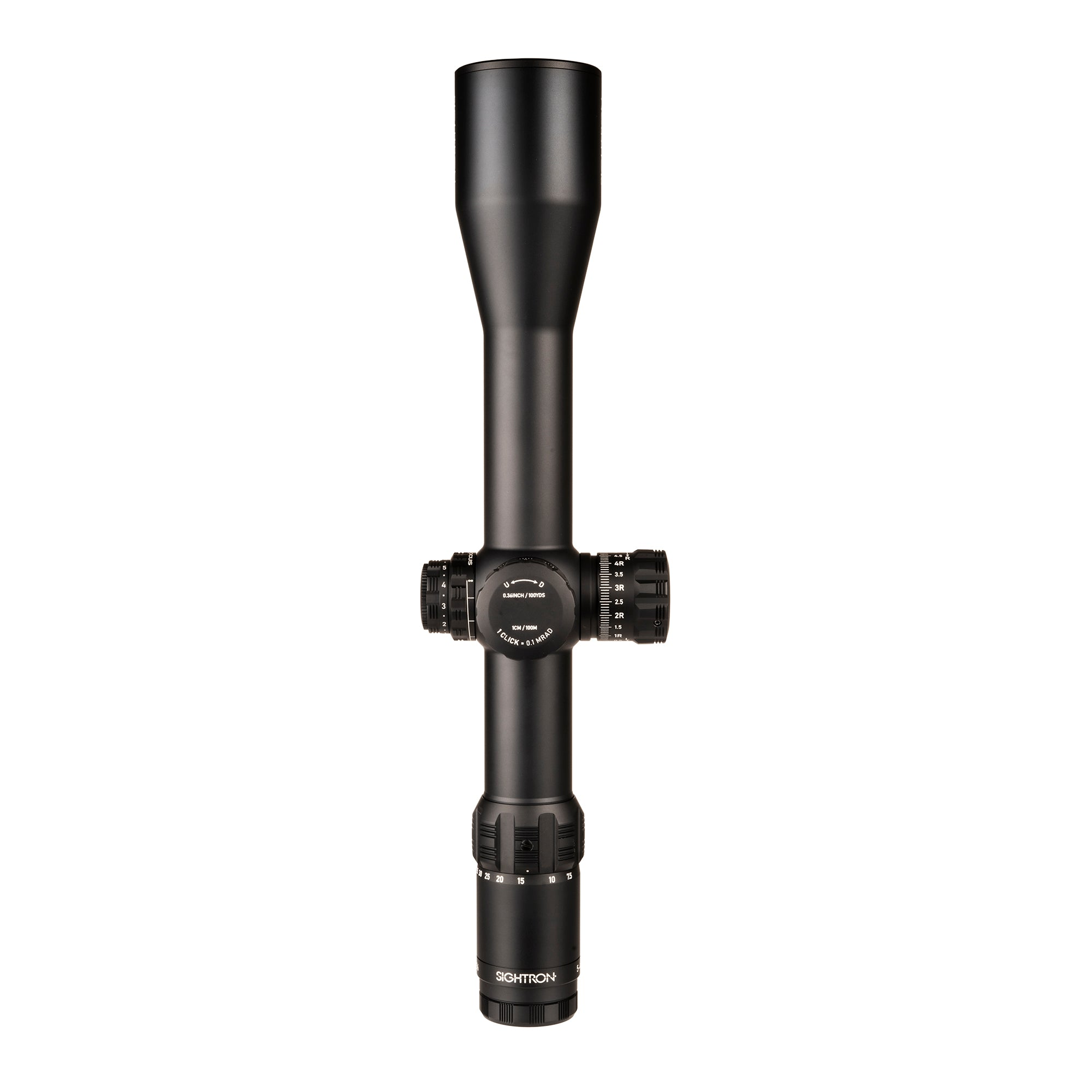

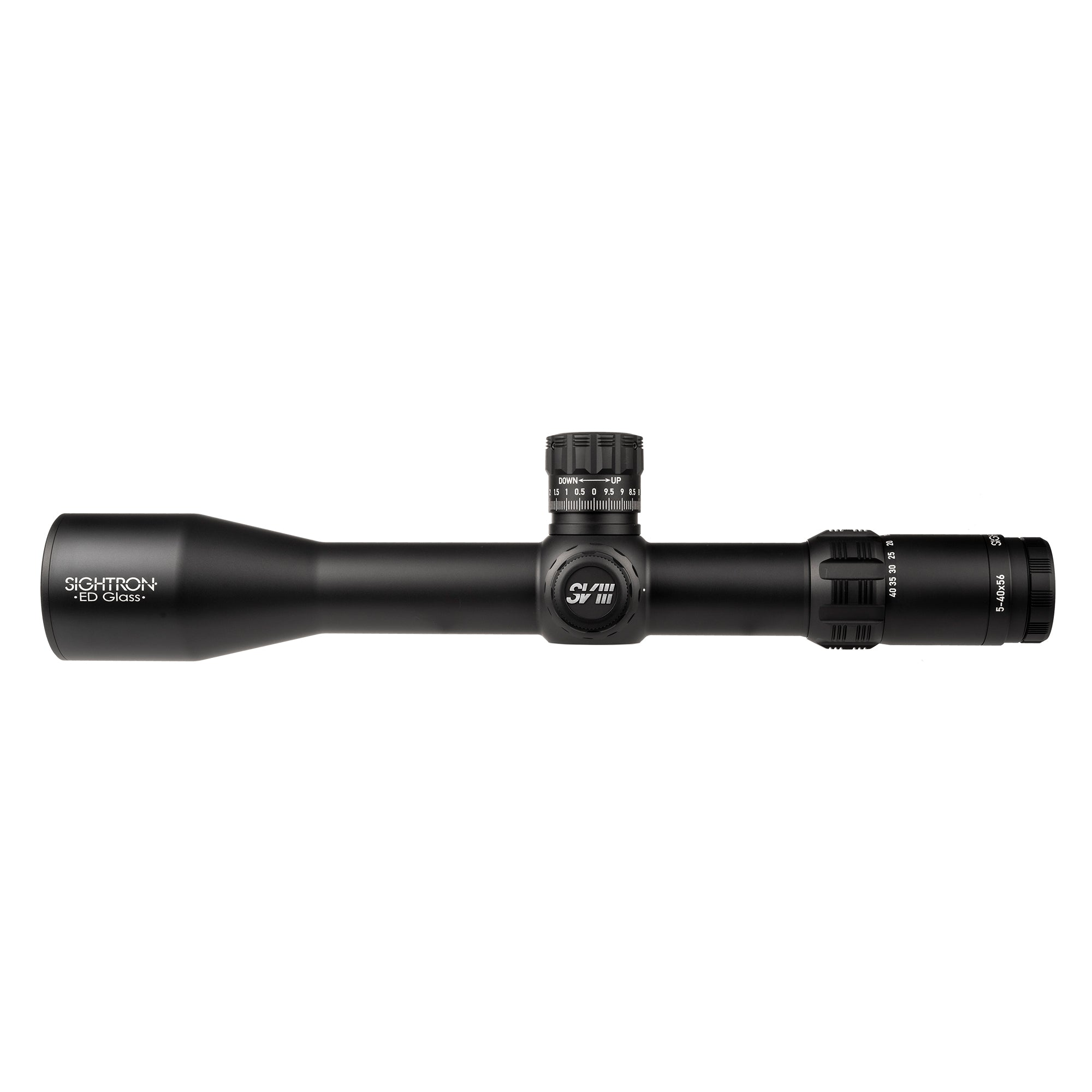

The Sightron SVIII 5-40×56 ED FFP is Sightron’s top long-range scope, and a great match for a SKOUT EVO on the bench or in the field. ED (extra-low dispersion) glass gives a bright, sharp picture all the way up to 40x, and the first focal plane reticle keeps its MIL values true at every magnification.

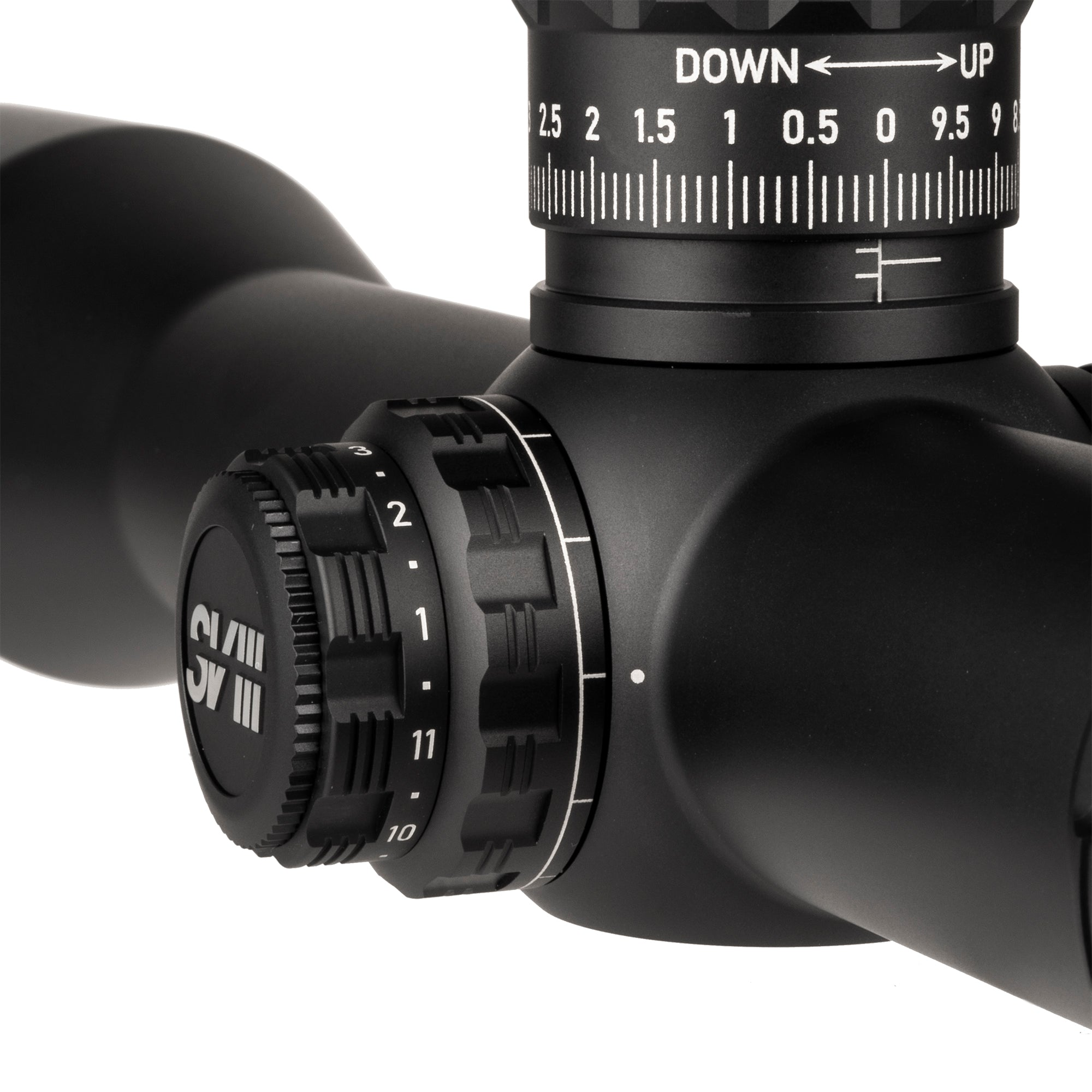

The 40mm tube gives a huge 40 MRAD of elevation and 20 MRAD of windage. The large tactical turrets click in 0.1 MRAD with 10 MRAD per turn, and an internal zero stop lets you spin back to zero by feel. Side focus runs from 10 meters to infinity, which suits airgun distances.
Choose your reticle: LRM or MH-6, both illuminated.
Features
| ED glass | Extra-low dispersion glass for a bright, sharp, true-color image, even at 40x. |
|---|---|
| ExacTrack windage and elevation | Sightron’s patented system keeps the adjustments and erector tube in constant alignment, so the scope tracks the same at zero and at full travel, with no drift. |
| MC-777 multi-coating | Sightron’s 7-layer coating on both sides of each lens, for less glare and more light to your eye. |
| First focal plane reticle | The reticle grows and shrinks with magnification, so its MIL values are correct at every power. |
| Etched glass reticle | Illuminated, with an 11-position side dial (CR2032 battery). |
| Internal zero stop | A positive stop you can feel and hear when you dial back to zero. |

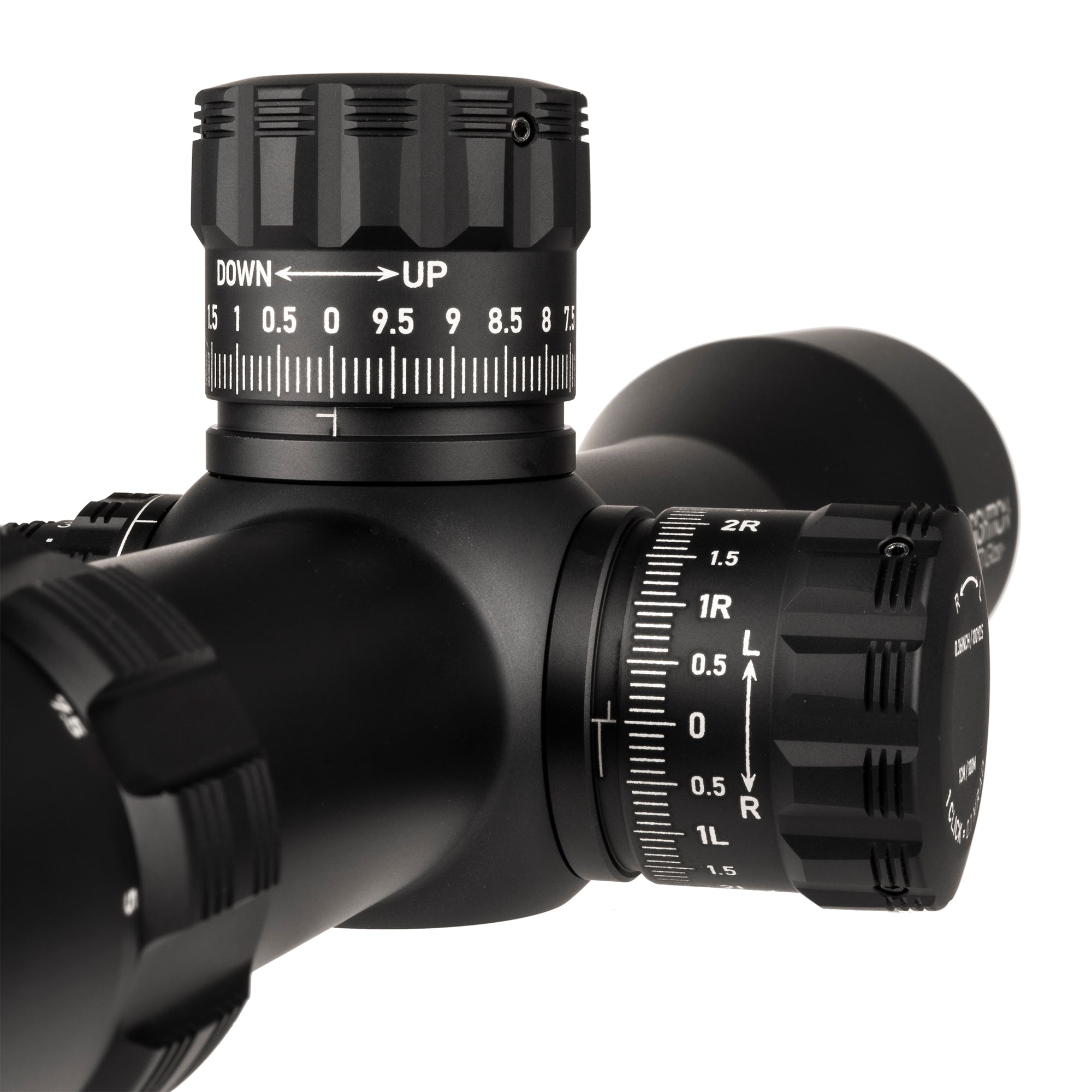

| Tactical turrets | Large, resettable, matte black, with high-visibility markings; windage marked L and R. |
| Shockproof | Built to take heavy recoil and accidental knocks. |
| Waterproof | Rated IPX7. |
| Fogproof | Nitrogen charged for a lifetime of fog-free use. |
| One-piece tube | 40mm tube milled from a single piece of lightweight, industrial-grade aluminum. |
Specifications

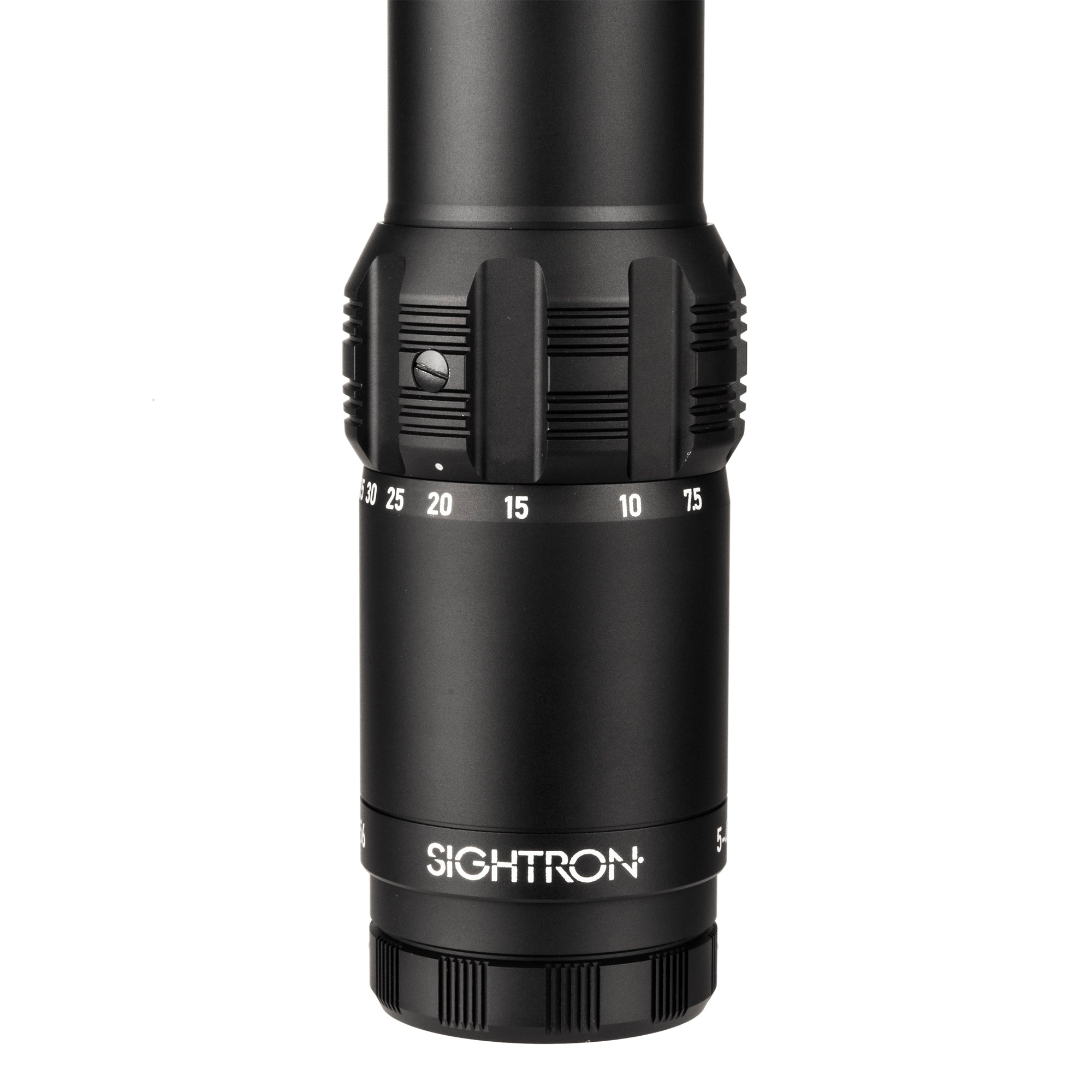

| Magnification | 5-40x |
|---|---|
| Objective lens diameter | 56mm |
| Eye relief | 3.8 in (5x) to 3.7 in (40x) |
| Field of view @ 100 yd | 23.7 ft (5x) to 2.97 ft (40x) |
| Field of view @ 100 m | 7.22 m (5x) to 0.9 m (40x) |
| Tube size | 40mm |
| Turret style | Tactical, resettable |
| Zero stop | Yes, internal |
| Click value | 0.1 MRAD @ 100 m |
| Adjustment per revolution | 10 MRAD |
| Max elevation adjustment | 40 MRAD @ 100 m |
| Max windage adjustment | 20 MRAD @ 100 m |
| Parallax setting | 10 m to infinity |
| Focus type | Side focus |
| Reticle | LRM IR or MH-6 IR |
| Focal plane | First (FFP) |
| Illumination | Yes, 11 positions, CR2032 battery |
| Finish | Matte black |
| Coatings | MC-777 fully multi-coated |
| Waterproof | Yes (IPX7) |
| Fogproof | Yes (nitrogen charged) |
| Length | 16.8 in |
| Weight | 49.0 oz |
| Sunshade | Included (3 in) |
| Sightron item number | 29001 (LRM), 29000 (MH-6) |
| UPC (LRM) | 793139290014 |
| Model name | SVIIISSED540X56FFPZSIRLRM / SVIIISSED540X56FFPZSIRMH-6 |
Reticles
Both reticles are illuminated MIL-hash designs made for the SVIII. Each has a floating center dot with hash marks every 0.2 MIL, and windage marks at full and half MIL elevations. The whole center section lights up bright enough for daylight use. Both are made for extra-long-range target shooting. Measurements are in MILs and hold at every magnification (first focal plane).

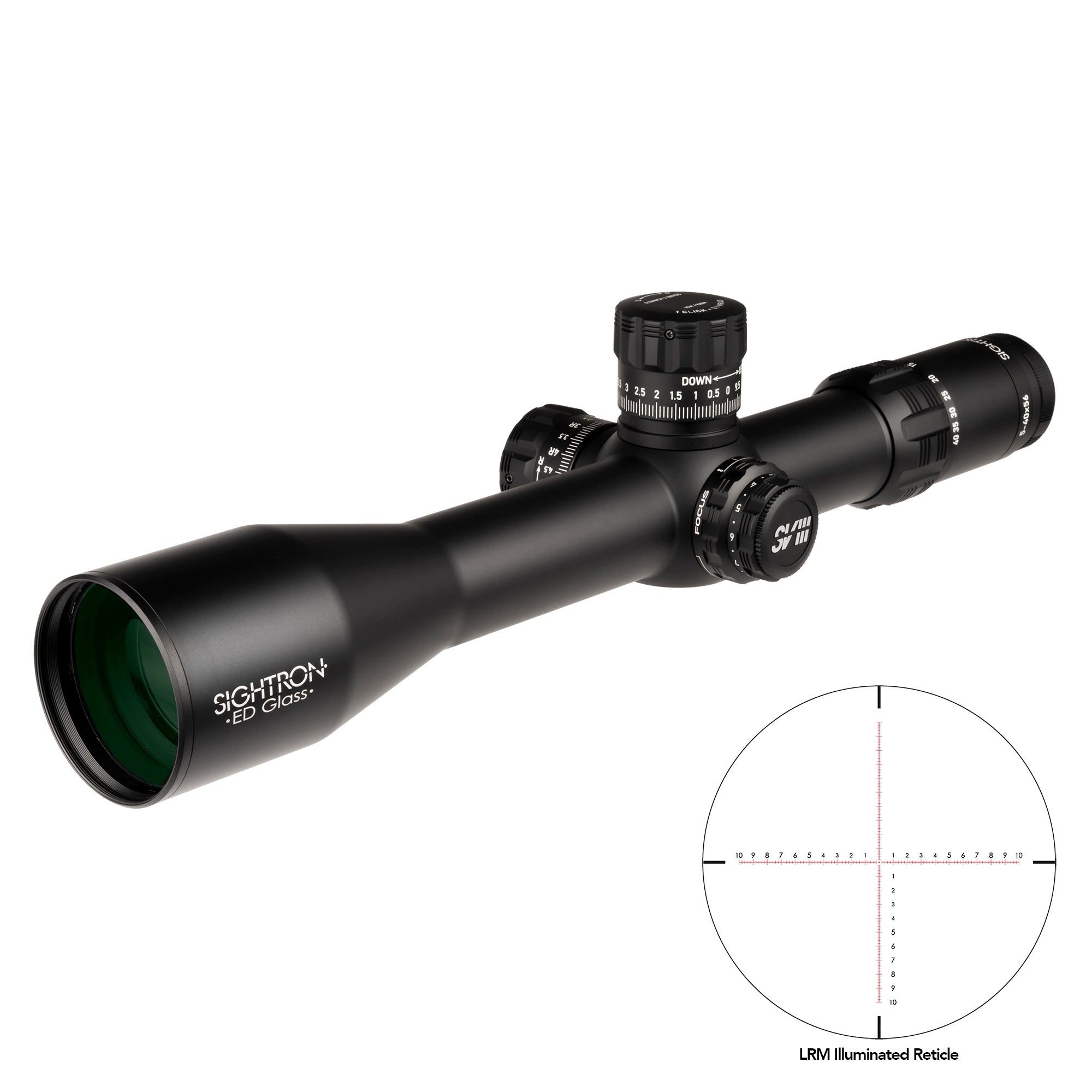

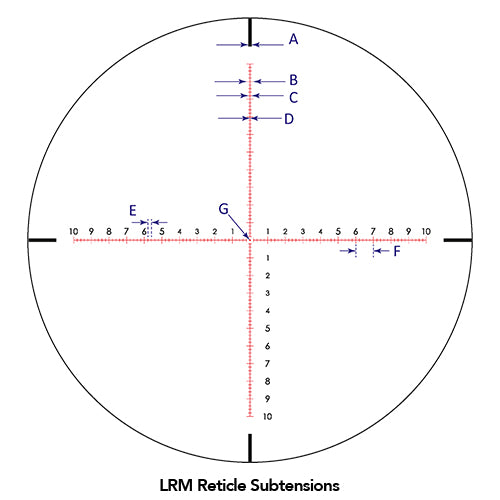

LRM (Sightron item 29001)
| A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|
| .2 | .2 | .1 | .03 | .2 | 1 | .05 |

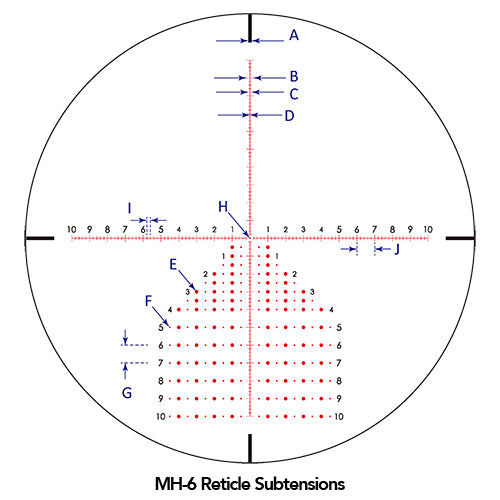

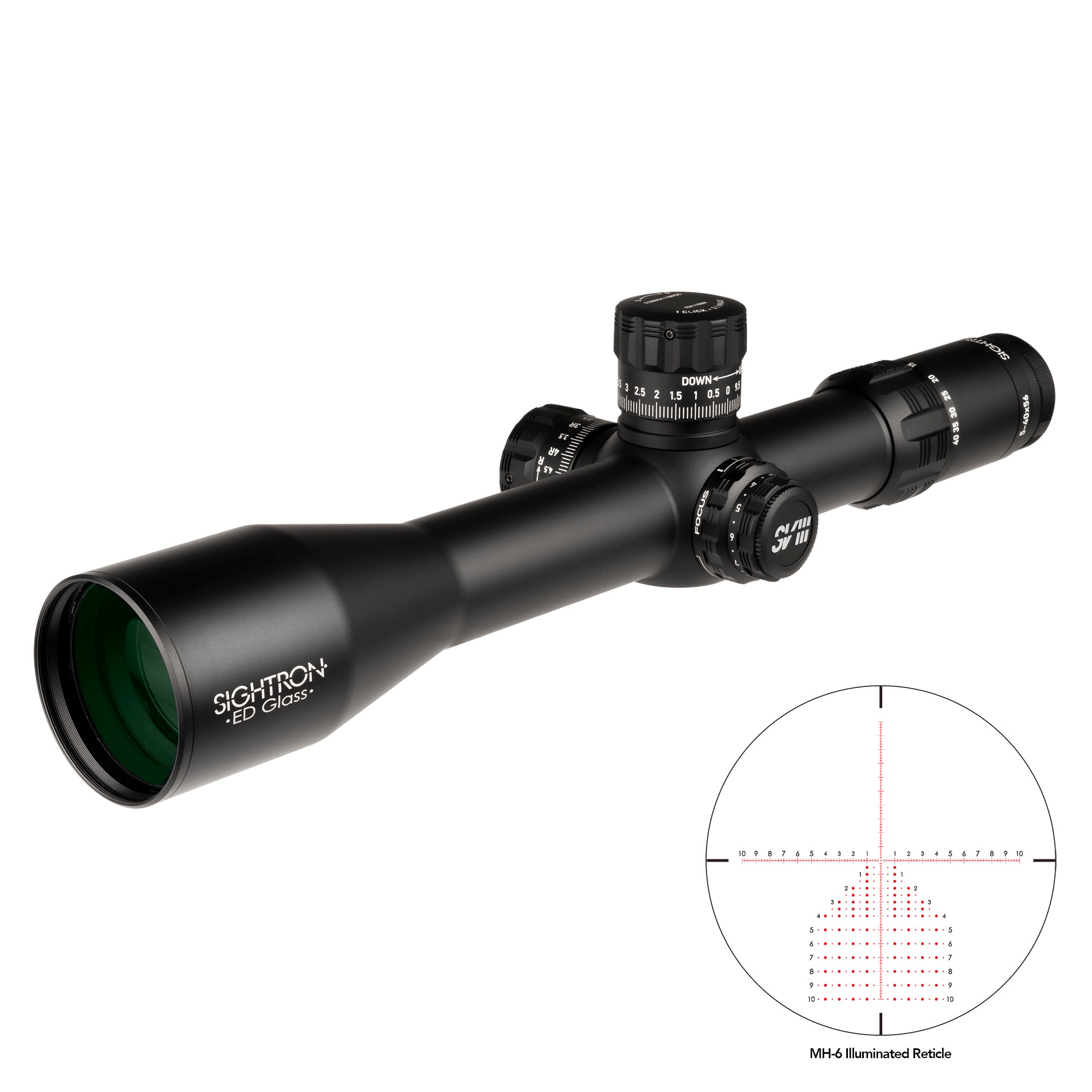

MH-6 (Sightron item 29000)
| A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|
| .2 | .2 | .1 | .03 | .075 | .03 | 1 | .03 | .2 | 1 |
Scope dimensions (inches)
| A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 16.8 | 8.2 | 3.75 | 2.7 | 4.1 | 4.5 | 2.56 | 1.78 |

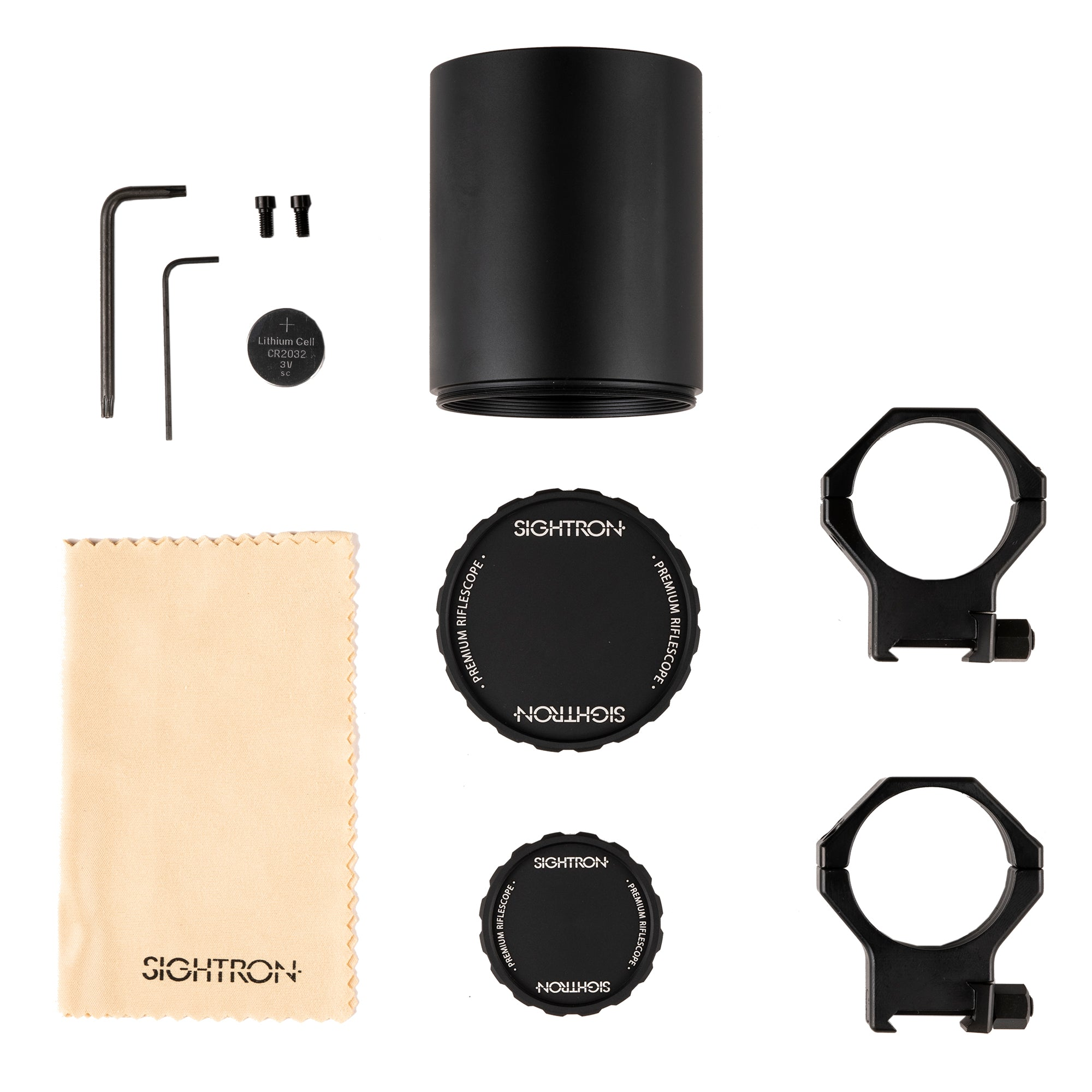

In the box
- SVIII 5-40×56 ED FFP riflescope
- 40mm rings for Picatinny rail, with T-15 wrench
- 3-inch sunshade
- Screw-in aluminum lens covers
- CR2032 battery
- Allen wrench for turret and zero stop adjustment
- Lens cleaning cloth
Downloads
Backed by Sightron’s Lifetime Performance Guarantee. SKOUT Airguns is an authorized Sightron dealer and is proud to be sponsored by Sightron.
