Description

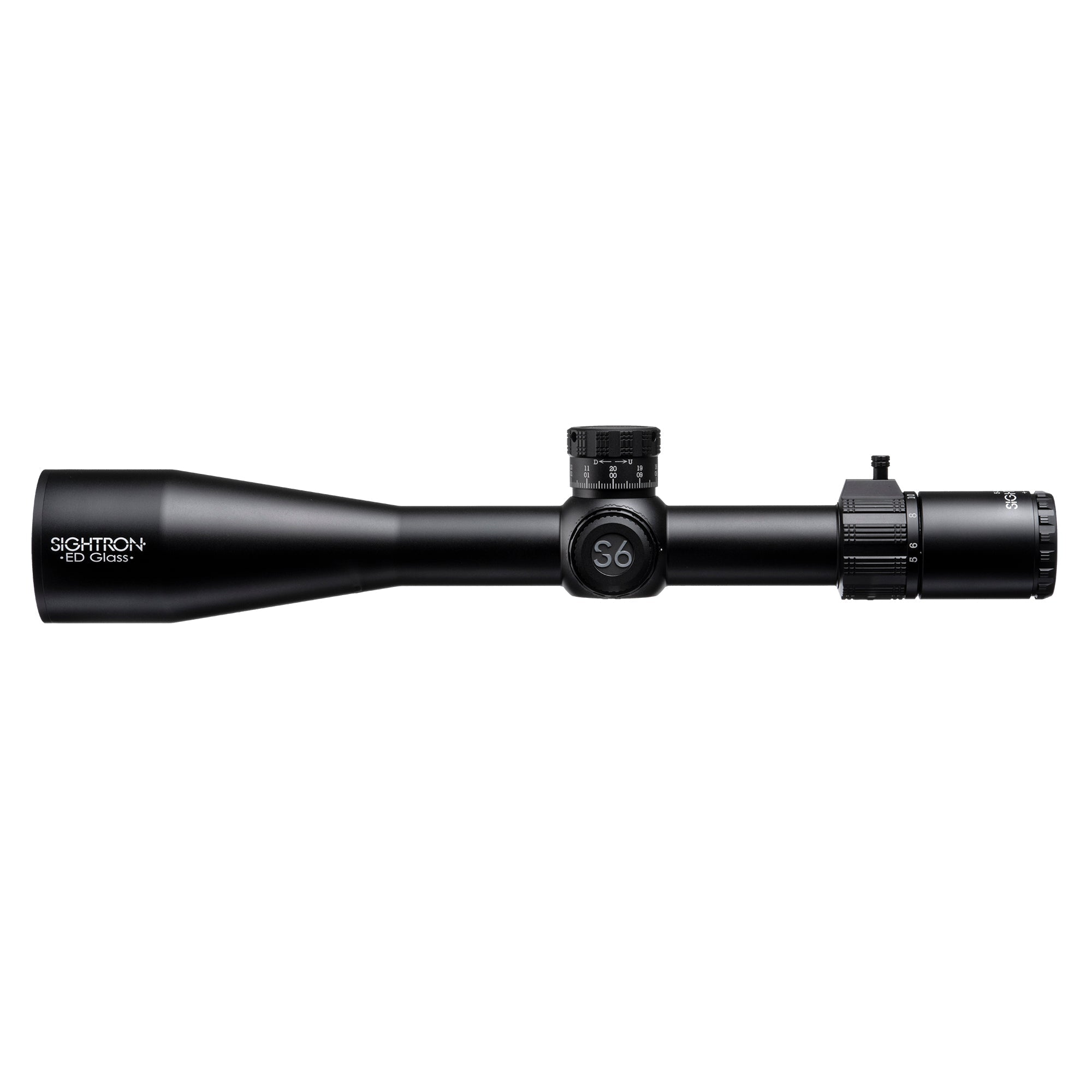

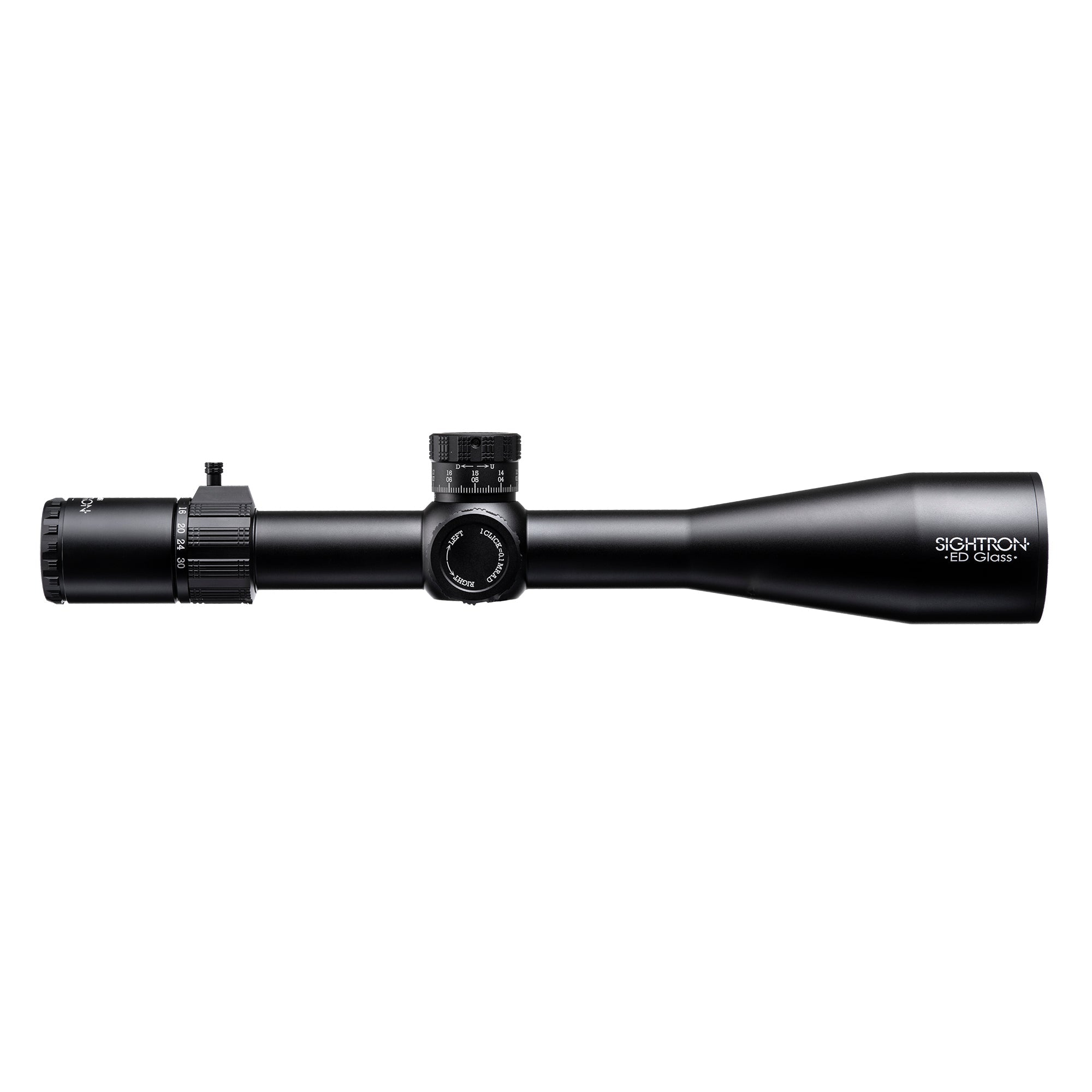

The Sightron S6 5-30×56 ED FFP Zero Stop is made in Japan for medium to long-range shooters and hunters. ED glass all but eliminates color fringing, the first focal plane reticle keeps its values true at every power, and the 34mm tube gives plenty of travel with zero stop tactical turrets.
Choose your reticle: MH-7 (MIL) or MOA-8 (MOA), both illuminated.
Features
| ED lens elements | Extra-low dispersion glass for a sharp, crisp image with almost no color fringing and true color. |
|---|---|
| Zact-7 Revcoat Plus multi-coating | Sightron’s coating for more light transmission, clarity and contrast. |
| First focal plane reticle | The reticle scales with the zoom, so its values hold at every magnification. |
| Etched, illuminated reticle | Etched glass with fiber optics; 11-position on/off illumination dial for any light. |
| ExacTrack windage and elevation | Sightron’s patented system keeps the adjustments and erector tube aligned for repeatable tracking with no drift. |

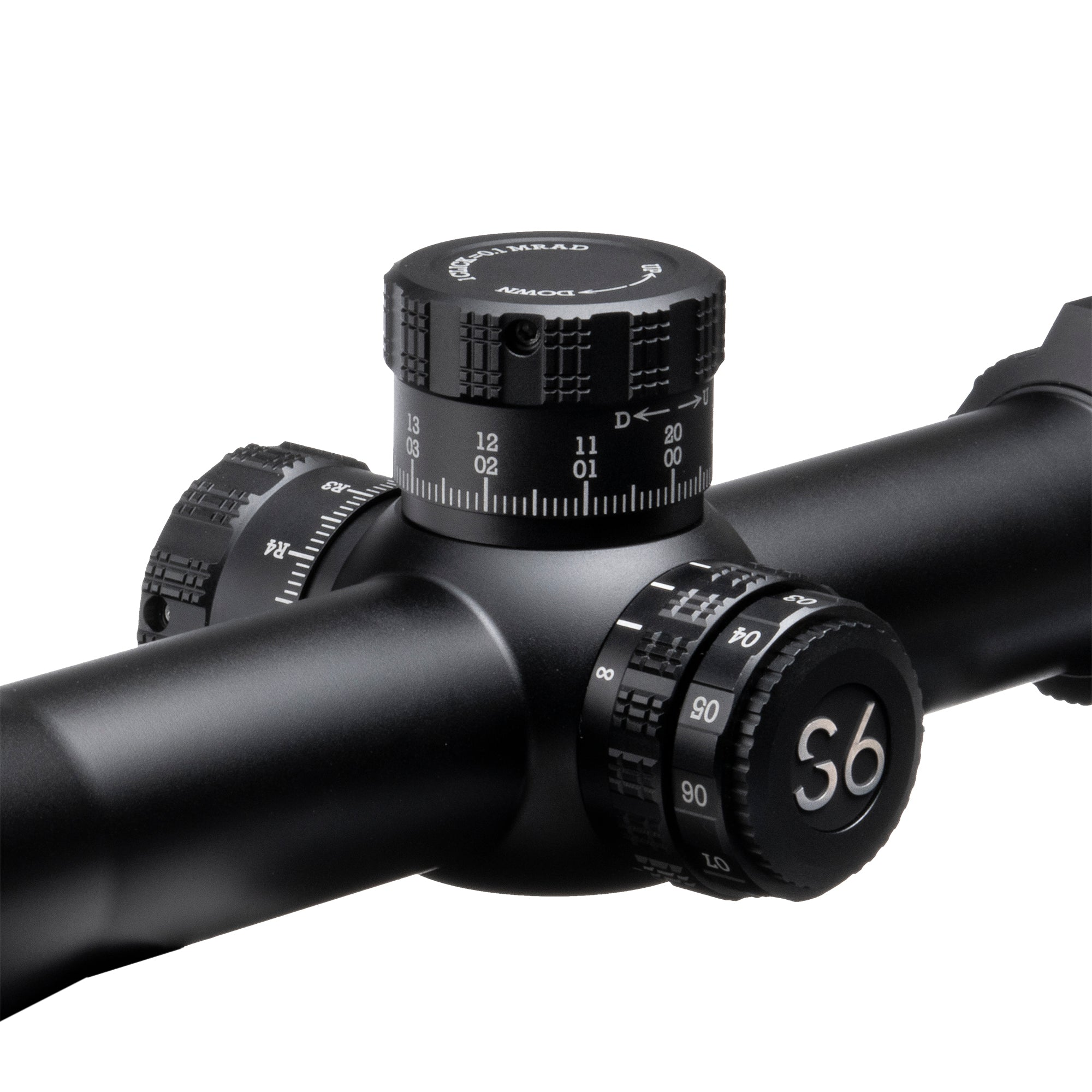

| Tactical turrets with zero stop | 34mm tube, zero stop turrets and a removable throw lever. |
| Shockproof | 1,000G shock rating, for even the heaviest calibers. |
| Waterproof and fogproof | IPX7 rated, O-ring sealed and nitrogen charged. |
| One-piece tube | Milled from a single piece of lightweight, industrial-grade aluminum. |
| Made in Japan | Backed by Sightron’s Lifetime Performance Guarantee. |
Specifications
| Magnification | 5-30x |
|---|---|
| Objective lens diameter | 56mm |
| Eye relief | 3.6 to 3.4 in |
| Field of view @ 100 yd | 22.7 ft (5x) to 3.8 ft (30x) |
| Tube size | 34mm |
| Turret style | Tactical, removable throw lever |
| Zero stop | Yes |
| Click value | 0.1 MRAD (MH-7) / 1/4 MOA (MOA-8) |
| Adjustment per revolution | 10 MRAD / 20 MOA |
| Max elevation adjustment | 23.3 MRAD / 80 MOA |
| Max windage adjustment | 17.5 MRAD / 60 MOA |
| Parallax setting | 10 meters (MH-7) or 10 yards (MOA-8) to infinity |
| Focus type | Adjustable side focus |
| Reticle | MH-7 IR or MOA-8 IR, illuminated |
| Focal plane | First (FFP) |
| Illumination | Yes, 11 intensity levels |
| Finish | Satin black |
| Coatings | Zact-7 Revcoat Plus |
| Shockproof | 1,000G shock rating |
| Waterproof | Yes, IPX7 rated |
| Fogproof | Yes |
| Length | 16.7 in |
| Weight | 33.3 oz |
| Sunshade | Included (3 in) |
| Country of origin | Japan |
| Sightron item number | 66003 (MH-7), 66004 (MOA-8) |
| UPC (MH-7) | 793139660039 |
Reticles
First focal plane, so these measurements hold at every magnification (at 100 yards).

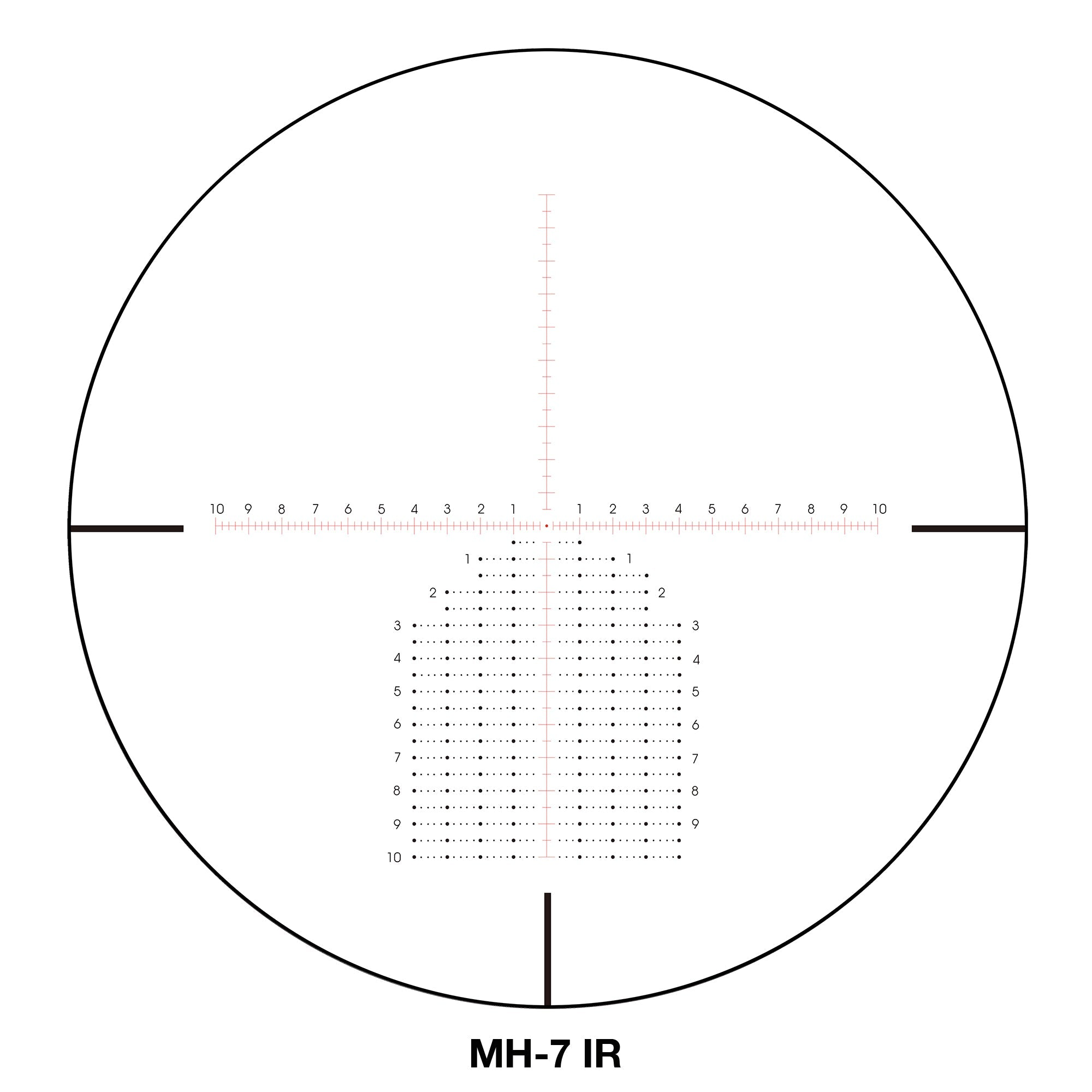

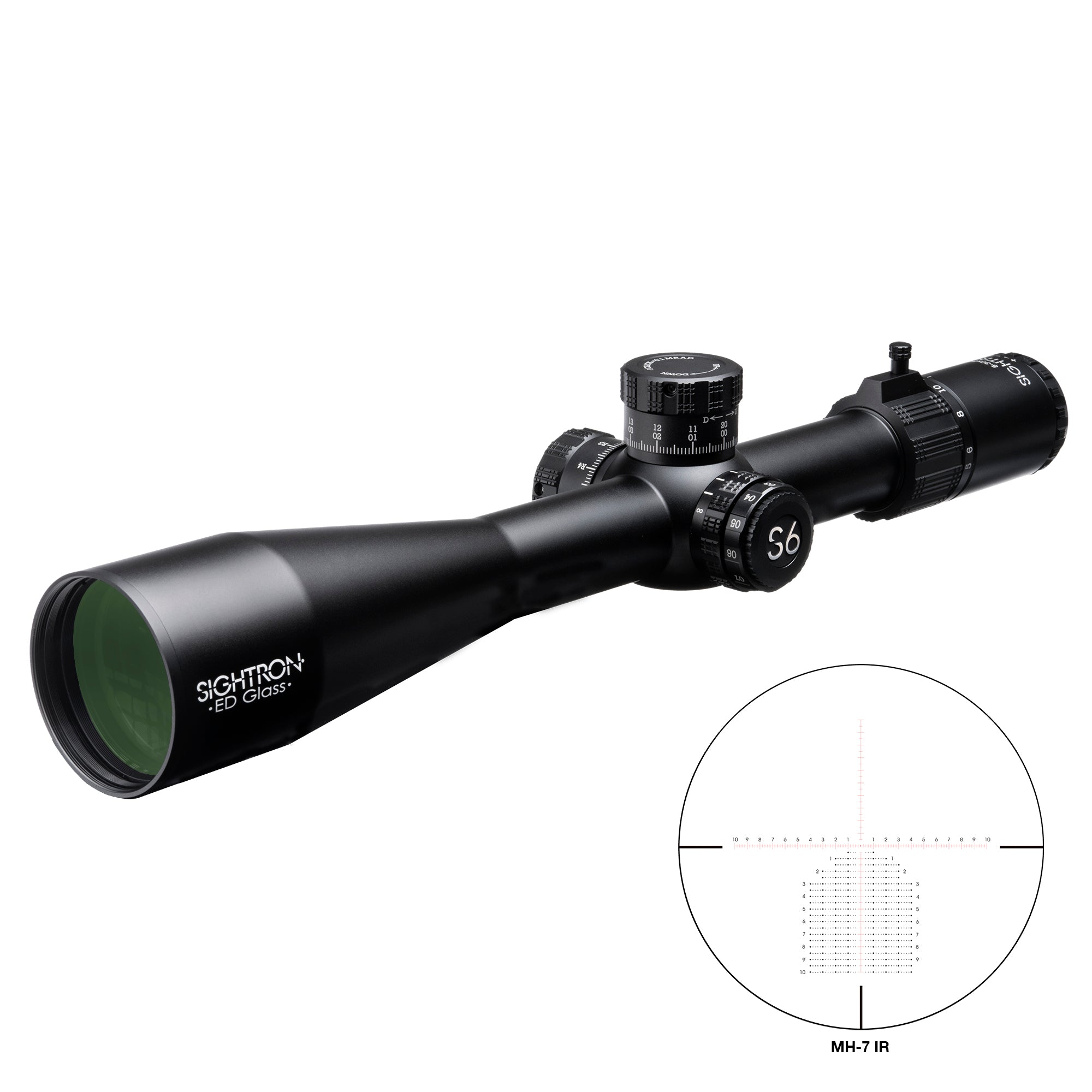

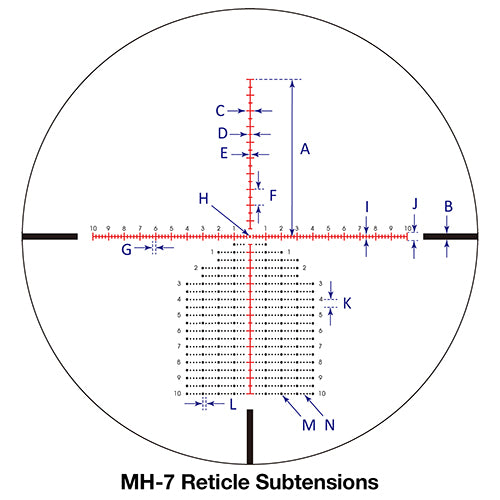

MH-7 (Sightron item 66003): a MIL-hash reticle with an illuminated center cross and hash marks every 0.2 MIL.
| A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | .4 | .4 | .2 | .03 | 1 | .2 | .06 | 6 | .6 | 6 | .2 | .075 | .03 |
MH-7 reticle instructions (PDF)

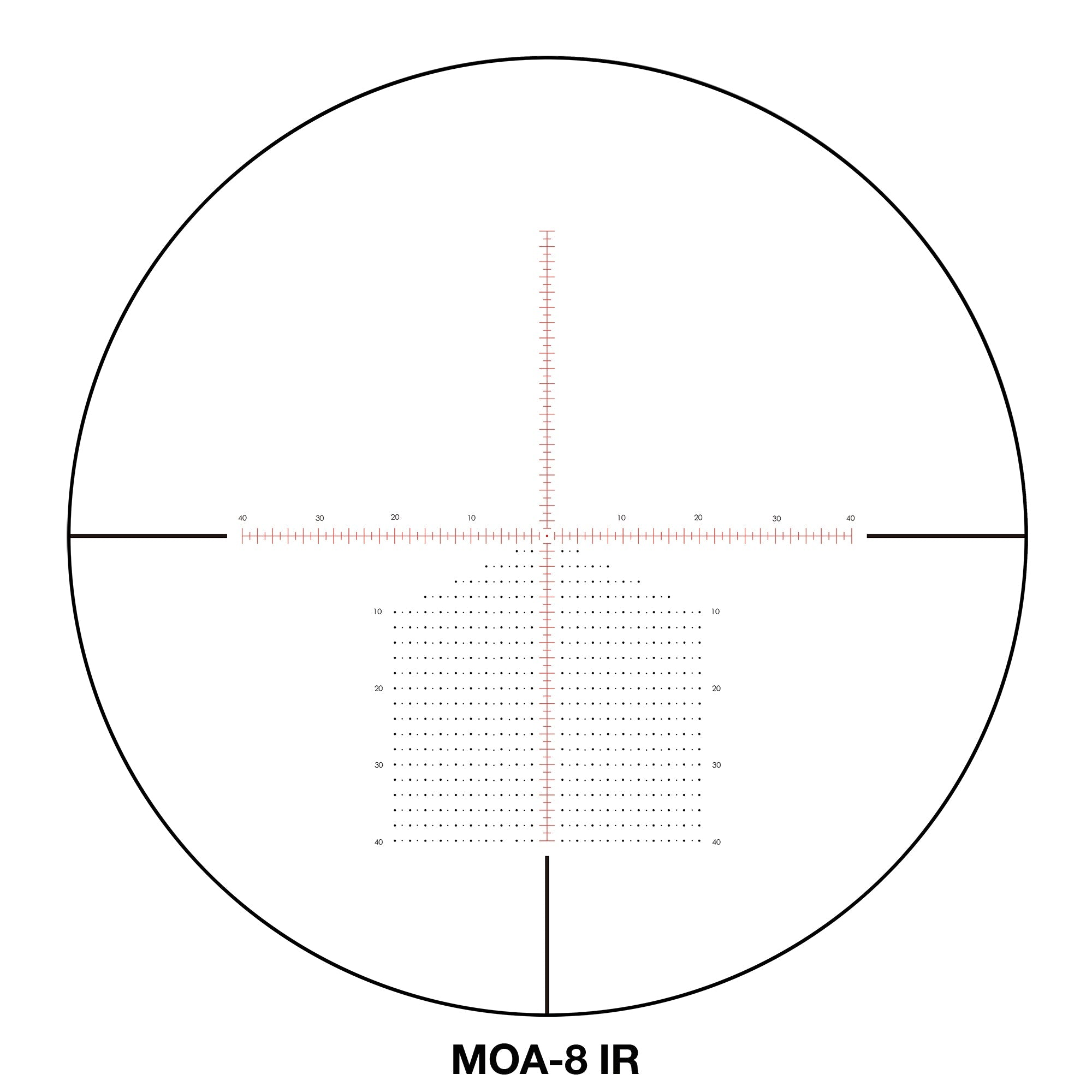

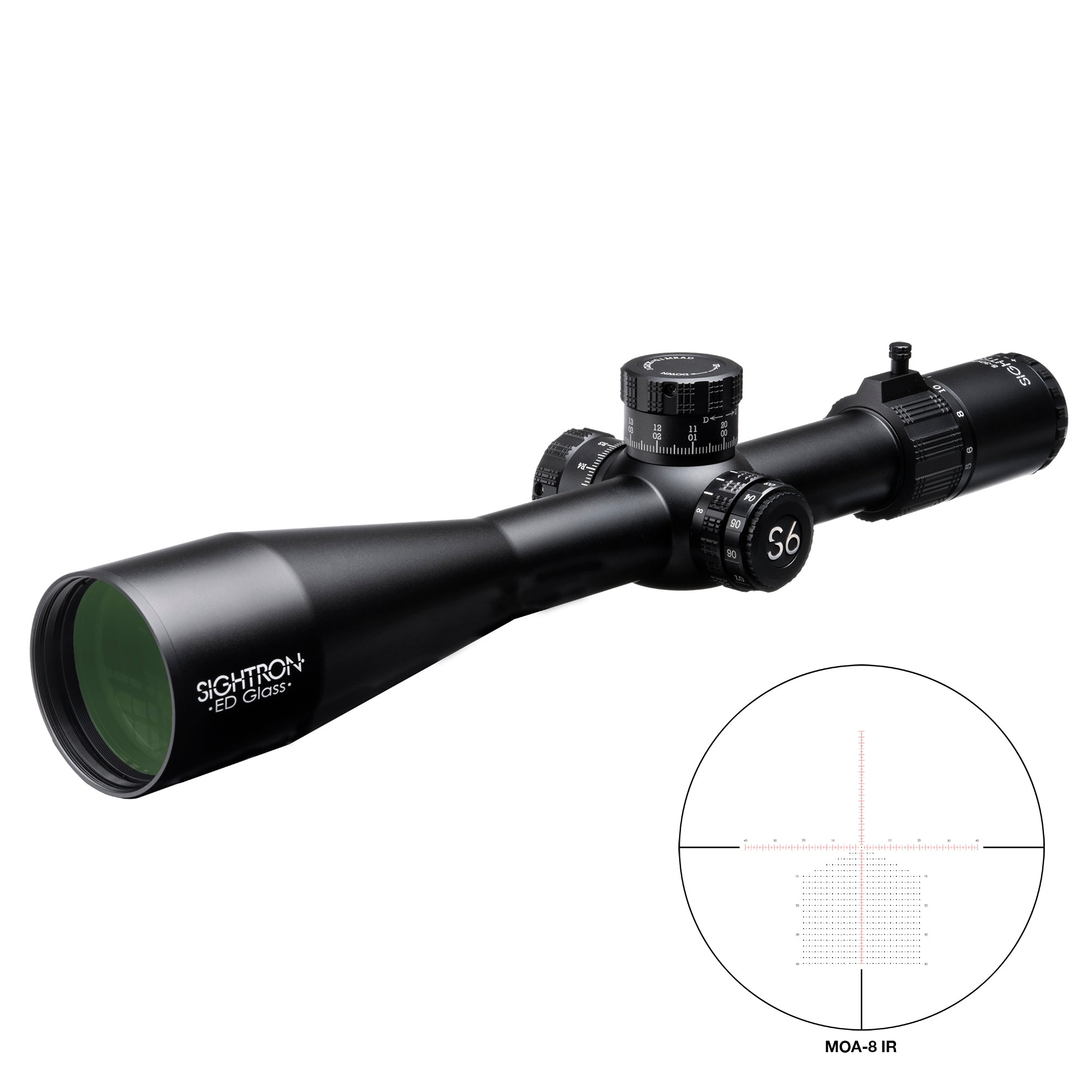

MOA-8 (Sightron item 66004): an MOA reticle with a floating illuminated center dot and hash marks at 1 and 2 MOA.

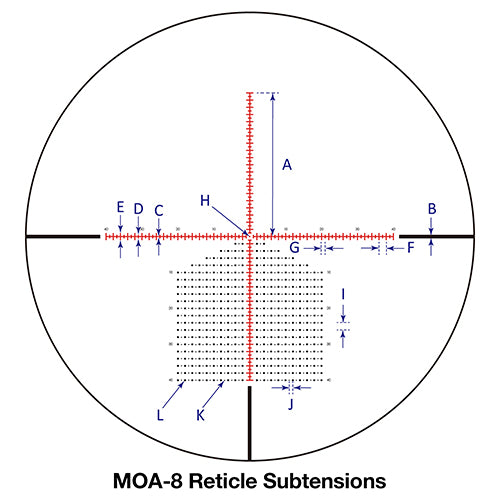

| A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 1 | .1 | 1 | 2 | 2 | 1 | .25 | 2 | 1 | .125 | .25 |
MOA-8 reticle instructions (PDF)
Scope dimensions (inches)
| A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|
| 16.7 | 7 | 2.5 | 2.4 | 3.8 | 5.9 | 2.55 | 1.8 |
In the box
- S6 5-30×56 ED FFP riflescope with your chosen reticle
- Instruction manual and reticle chart
- Flip-up lens covers
- 3-inch sunshade
- 1.27mm and 2.0mm Allen wrenches
- Lens cleaning cloth
- CR2032 battery
Downloads
Scope rings are not included. Backed by Sightron’s Lifetime Performance Guarantee. SKOUT Airguns is an authorized Sightron dealer and is proud to be sponsored by Sightron.
